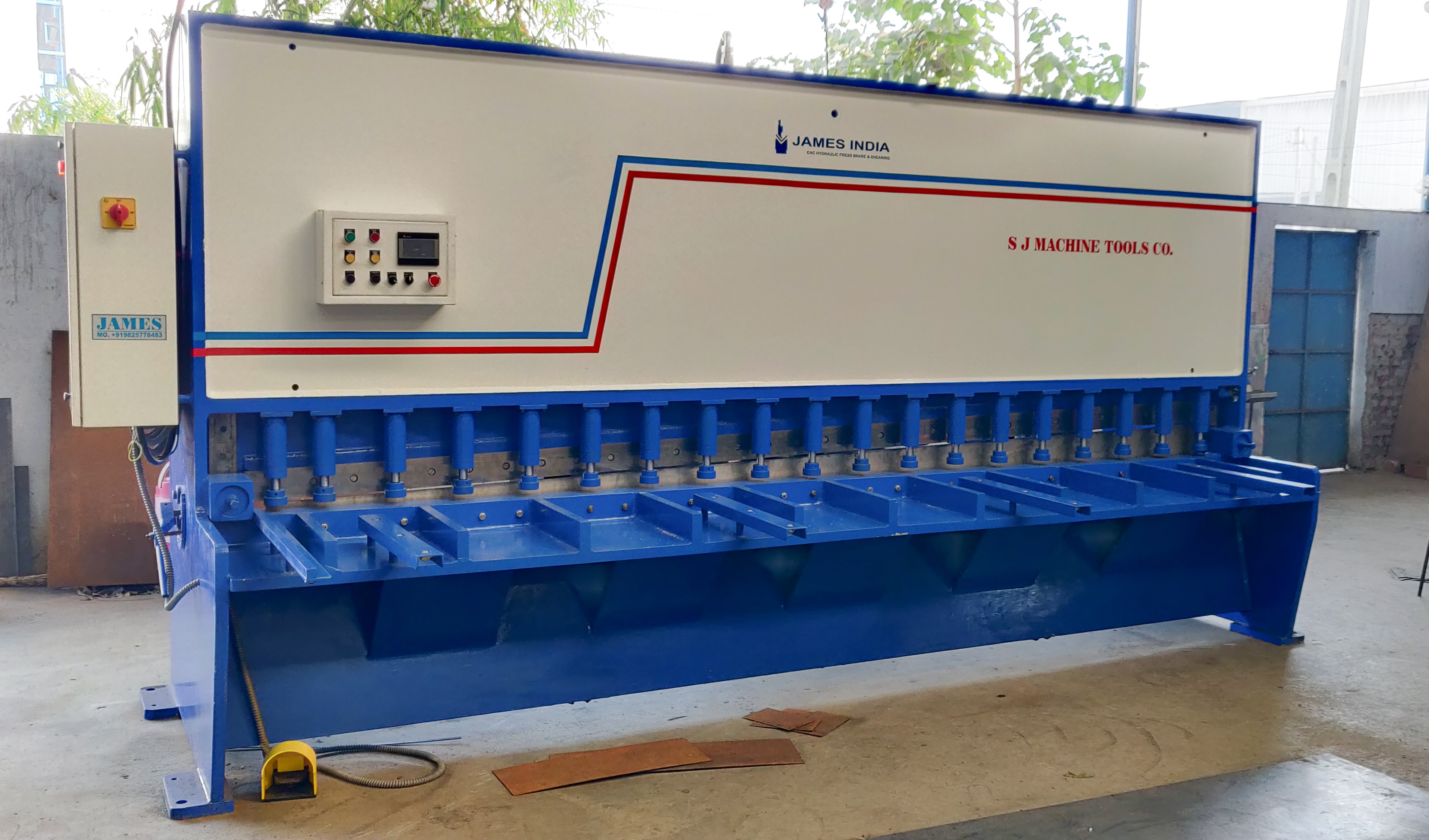

NC HYDRAULIC SHEARING

  • Range : 3 mm to 30 mm
  • Length : 2000 mm to 6000 mm

Fetures

  • Variable Rake Angle Cutting can achieve higher performance and strength.
  • Top blade with four cutting edges & bottom blade with four cutting edges (D-2 material).
  • X axis (Back gauge) and Cutting time can be programmed by NC controller.
  • X axis Back gauge working mechanism HIWIN ball screw & servo motor.
  • NC controller store up to 100 groups of programs.
  • Cutting angle can be adjusted by NC controller.
  • Better cutting accuracy in thin sheets at lower rake angle.
  • Higher cutting capacity at maximum rake angle.
  • Pre-calibrated easy blade gap adjustment.
  • Low noise & smooth operation gives higher efficiency of operator.
  • Less power consumption.
  • Better safety for operator and machine.
  • Front sheet support.
  • Squaring arm with steel rule for front gauging.
  • Hold down cylinders.
  • Cutting area illuminated for clear view of blades.
