CNC Hydraulic Press Brake

  • Range : 40 MT to 800 MT
  • Length : 2000 mm to 6000 mm

Fetures

  • CYBELEC Controller.
  • ATOS - Italy CNC Hydraulic System
  • 3 AXIS CNC Automatic Y1 + Y2 + X Axis & Crowning.
  • CNC Motorized Crowning.

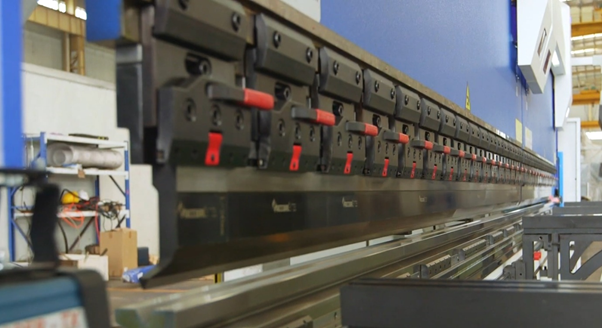

Quick Release Clamp European Standard.

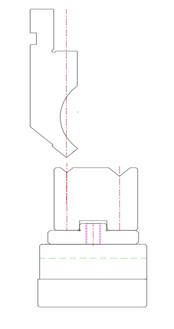

STANDARD AVAILABLE LENGTH FOR PUNCHES & DIE

  • Material: C45
  • Available sections Punch: 835 mm solid ; 415 mm solid, 805 mm sectioned , Solid piece L=835 mm
  • Sectioned pieces with total L=805 mm:[Horn L 100 mm + 10 mm + 15 mm + 20 mm + 40 mm + 50 mm + 200 mm + 270 mm + Horn R 100 mm]
Angle H R Max t/m
85° 66,65 0,5 100
88° 66,65 0,5 100
  • Centricl 2-V die, Die Holder, Die Holder Base
  • Material: C45
  • Available sections die : 800 mm solid Sectioned pieces with total L=805 mm: [Horn L 100 mm + 10 mm + 15 mm + 20 mm + 40 mm + 50 mm + 200 mm + 270 mm + Horn R 100 mm]

CYBELEC CYB TOUCH 8 PS CONTROLLER

The Intuitive Programming
CybTouch 8 PS is intended specifically for synchronized press-brakes.
As part of the CybTouch range, it has an intuitive and vivid color touch screen and a high integration of functions.
Thanks to its interactive touch software interface with large keys, on-line help, and many other automatic functions to constantly guide the operator, CybTouch 8 PS is as simple as a positioner control.
CybTouch 8 PS is integrated into a sleek and modern housing specially designed to be attached to a swiveling arm, or can optionally also be delivered as a robust panel.

Configuration : Axes configuration, inputs/outputs and auxiliary functions can bemade to precisely fit the specific needs of the machine.

EasyBend page
Provides immediate easy use of the machine: a second operator can briefly interrupt production without changing the program when an urgent bend is required.

Memory capacity :
  • 100 Punches
  • 100 Dies
  • 300 Programs
  • 24 Sequences per program
  • 10 Materials

Powerful :
  • Controls 3 axes (with 4th axis asoption).
  • 2D graphic profile creation withmanual sequencing (option).
  • Bend allowance calculation.
  • Pressure – crowning calculation.
  • Each part or bend can have its specific tools.

CNC AUTOMATIC MOTORICE CROWNING

  • Most widely used crowning method for the ordinary press brake, with good compensation effect and low cost. In real operation, it is very convenient and easy for operators.
  • Mechanical crowning is a kind of new deflection compensation method, which generally uses a triangular oblique wedge structure.
  • The principle is that the two-triangle wedge block with a angles, the upper wedge moving is fixed at x-direction and can only move in Y-direction. When the wedge moves the Ax distance along the X-direction, the upper wedge moves up the H distance under the lower wedge force.
  • Regarding the existing mechanical compensation structure, two bolster plates are placed in full length on the worktable, the upper and lower plates are connected through the disc spring and balts. The upper and lower plates are consist of a number of oblique wedges with different slopes, through the motor drive to make them relatively moving and forming an ideal curve for a set of convex position.

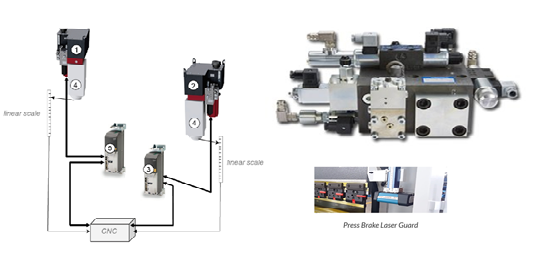

CNC HYDRAULIC SYSTEM , PRESS BRAKE SAFTY SYSTEM

X – Axis CNC back gauge

  • X - Axis working length 0.0 to 550mm Back gauge assembly equipped with hardened ball screw Hiwin, Linerar Guide Rail & timer belt
  • Multiple bends with different back gauge positions can be programmed.Movable Backgauge fingers withe height adjustable Z stopper,High-speed back gauge movement by AC servo drive. The back gauge repeated position accuracy within ±0.1mm.
  • Our standard press brake is equipped with CNC controlled back gauge that automatically adjusts the X(depth) and R (manual) axes to ensure your material is always positioned accurately, resulting in higher quality finished parts. Axis movements are driven by Mitsubishi AC Servo Motors and Mitsubishi drives.
  • Using the best components, such as HIWIN linear guides, ball screws, our back gauge movements are fast and precise,with X-axis Speeds. The correct back gauge for the application can have a substantial positive influence on production part volume and accuracy.
  • The more intricate the parts, typically the more axes on the back gauge you should have. Volume of parts needs to be considered also. A smart, experienced brake press operator can bend, form and produce some very intricate parts without even a single axis back gauge. However, the more time it takes to form the correct part, the more costs you have in the part. So the best scenario would be to have an experienced operator with the correct back gauge system that will magnify their skills. But in today’s market, smart, experienced Press Brake operators are getting hard to find. So the correct back gauge for the application will decrease costs per part by helping to make a good press operator, a great one. The less experience an operator is the more axes you should have. Also, experienced operators know the benefit of correct back gauge for applications.
